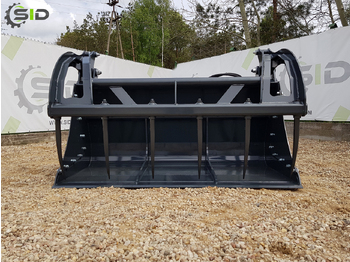

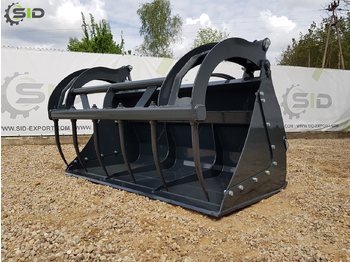

Leasing SID KROKODILSCHAUFEL GESCHMIEDETE ZINKEN XXL / Godet Crocodile BMS XXL / Crocodile grab bucket forged tines XXL 1,8 m SID

Crocodile grab bucket forged tines XXL is equipped with a conical bucket which makes it easy to fill and empty the machine. There is no problem with access to the material, also against the walls, because the XXL crocodile bucket opens very wide. The possibility of unscrewing the sides gives us easier transport of wood material such as branches, logs, etc. Thanks to the use of HARDOX abrasion resistant steel blades and the possibility of lubricating the movable place on the sleeves, the machine is protected against quick wear.

- A solid and durable structure made of S355 high-strength steel, 8 mm plating and sides, 15 mm reinforcements, blade made of HARDOX 500HB 150×20.

- High-power hydraulic cylinders enable the appropriate, firm grip of the material.

- The full bottom of the bucket-crocodile enables the complete collection of the material and prevents it from falling out during transport.

- Forged replaceable teeth characterized by high strength, embedded in conical sleeves and welded into a profile 80x80x5-6 mm.

- Zinc-plated pins made of wear-resistant C45 steel ensure reliable operation.

- Hydraulic lines DN10 2SN 330 bar.

- The advantage of the device is the wide 90-degree opening angle of the movable frame, which allows easy loading from the prism, even directly from under the wall.

- All welded fixing.

- 12-month warranty.

Width | Volume SAE | Number of tines | Weight | Price

1800 mm | 1,45 m3 | 6 pcs.| 630 kg | 2 955 €

2000 mm | 1,60 m3 | 7 pcs.| 690 kg | 3 050 €

2200 mm | 1,75 m3 | 7 pcs.| 725 kg | 3 155 €

2400 mm | 1,95 m3 | 8 pcs. | 760 kg | 3 290 €

2600 mm | 2,10 m3 | 8 pcs. | 810 kg | 3 400 €
