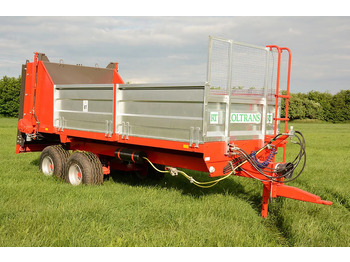

Leasing Roltrans N250/4 JAMNIK

Technical specification

Payload - 8000 kg

Weight - 3500 kg*

Permissible total weight - 11500 kg

Cargo area - 8 m2

Cargo box capacity - 6.4 m3

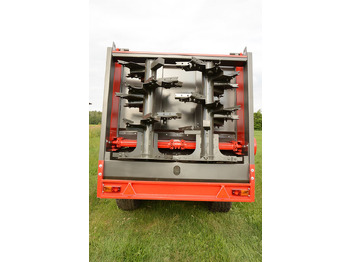

Double drum vertical adapter with replaceable knives

Dimensions - 7150/2150/2750 mm (L/W/H)

Dimensions inside the cargo box - 4600/1740/800 mm (L/W/H).

Floor height from the ground - 1200 mm

Wheel base - 1600 mm

Permissible load per coupling device up to 2500 kg

Suspension tandem springs or wishbones

Tire size 400/60 - 15.5

Speed 25 km/h

Minimum engine power 80 hp

PTO speed 540 rpm.

Spreading width 8-12 m

Standard equipment

-vertical double-drum adapter with replaceable knives

-extended cargo box

-tandem type wishbone suspension ensuring stable and smooth ride

-hydraulic floor conveyor drive with stepless adjustment -four-chain floor conveyor with 11 mm link and replaceable slats

-one- or two-wire pneumatic brake system (to be agreed with the customer)

-hydraulic lifting rear wall

-hot-dip galvanized sideboards

-hot-dip galvanized ladder with anti-slip steps

other parts of the spreader shot-blasted before painting

-special housing under the drums to protect the spreader from spreading manure

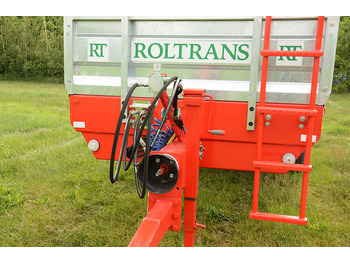

-rigid drawbar with an eye of 50 mm diameter, adapted to work with the lower hitch of the tractor

-drawbar support

-wheels with tires 400/60-15.5

-safety net mounted on the front side

-12 V lighting system

Optional equipment

-EU homologation

-hydraulic brake system

-four-chain floor conveyor with 14 mm link

-sprung tandem suspension for a stable and smooth ride

-hydraulic distributor for tractors with two hydraulic outlets

-rigid drawbar with an interchangeable eye of 40 mm diameter, adapted for cooperation with the tractor's top hitch

-frame made of 160 mm metallurgical channel section

-wheels with 500/50-17 tires

-spare wheel in bulk

-deflectors

-standard PTO for coupling to the tractor

-wide-angle PTO for coupling to the tractor
