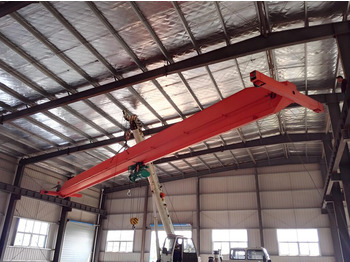

Leasing XCMG Electric Single Girder Overhead Crane

The electric single-girder overhead traveling crane is designed and manufactured according to the standard JB/T1306-1994.

It is used in conjunction with electric hoists to become a light and small crane with rail operation.

The applicable lifting capacity is 1-16 tons, the applicable span is 7.5-30.5 meters, the working level is A3-A5, and the working environment temperature is within the range of -25 to +40°C.

The electric single-girder overhead crane is a general-purpose crane, mostly used in places such as machinery manufacturing, assembly, and warehouses where the frequency of use is low or the number of lifts with the rated lifting capacity is small.

The electric single-girder crane is provided with three operation forms of the ground, control room, and remote control.

The control room also has two forms of opening at the end face and side face for users to choose and use.

The usage methods are as follows:

(1) Ground operation

Example: Lifting capacity: 3t, span: 10.5m, lifting height: 6m, working level A3

Representation method: LD310.56DA3

(2) Control room operation (split control room KS and closed control room BS)

Example: Lifting capacity: 5t, span: 16m, lifting height: 6m, working level A3, open control room operation representation method: LD5T S16 H6 A3

The LD type electric single-girder crane is widely used for lifting goods in different occasions such as factories, warehouses, and material yards. It is prohibited to use in flammable, explosive, and corrosive medium environments.

The LD type electric single-girder overhead traveling crane is provided with two operation forms of the ground and the control room.

The control room has open and closed types. It can be divided into two forms of installation on the left or right side according to the actual situation.

The entry direction has two forms of side and end face to meet the needs of users to choose in various different situations.
