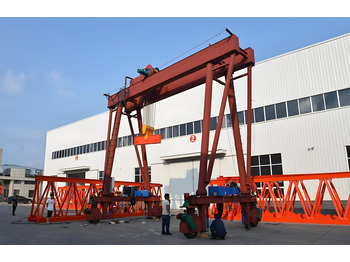

Leasing XCMG Double girder tyre gantry crane

Direct sales from China rubber-tyred gantry crane manufacturers, and can also be directly supplied by the rubber-tyred gantry crane company.

This kind of double girder tyre gantry crane is suitable for product transfer, special attention: this product can’t run with heavy load!

Specification models:

Product model: MG type rubber-tyred gantry crane;

Product specification: 10-200 tons;

Effective lifting height: 8-30 meters (M); Span of the tire girder lifter: 5-20 meters (M);

Working mode:

The rubber-tyred gantry crane is used for the lifting, transportation and transfer of 32m, 24m and 20m box girders in the prefabrication yard, as well as the reinforcement cage and the overall inner mold. Operation mode: It can realize the straight, oblique, lateral and in-situ rotation modes.

When heavy-duty steering, the support cylinder acts on the ground to reduce the ground contact pressure and shear failure of the tires.

The whole machine adopts the mechatronic-hydraulic integrated micro-electronic control technology, and the power of lifting and traveling is driven by hydraulic.

Technical parameters of the Double-girder tyre gantry crane:

Working level: A3/M3;

Power supply: Can be customized;

Travelling speed of the large vehicle: 8m/min;

Travelling speed of the small vehicle: 6m/min;

Lifting speed: 1.5m/min, 0-0.5m/min, 0-1.5m/min;

Running speed: 6m/min, 0-17m/min, 0-35m/min;

Whole machine power: Can be customized;

Adaptable slope: ±5%;

Operation form: Wireless remote control operation;

Structural form: Box-type gantry crane;

Application range: Railway bridge erection, highway bridge erection, subway project, viaduct construction;

The parameters of this product need to be designed and produced according to the actual lifting weight, span and lifting height, and can also be customized according to the customer’s usage needs.
