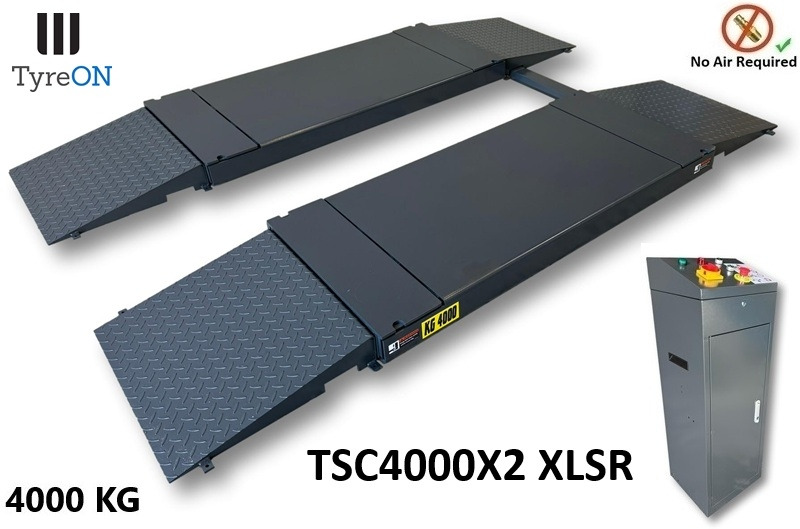

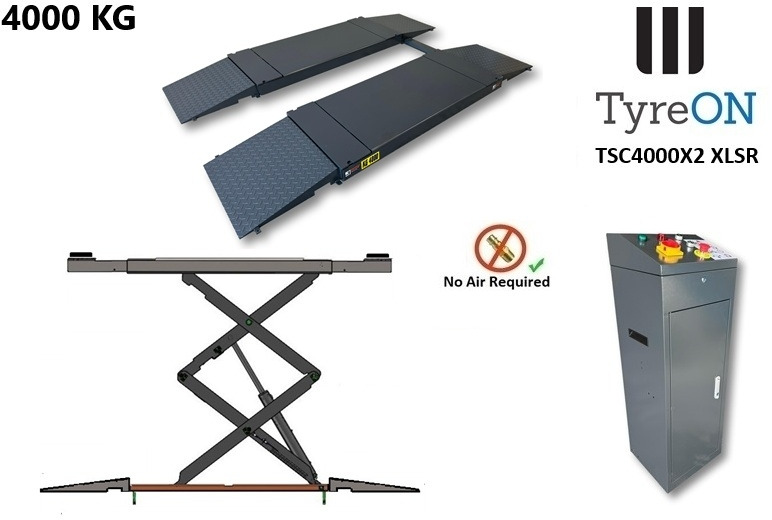

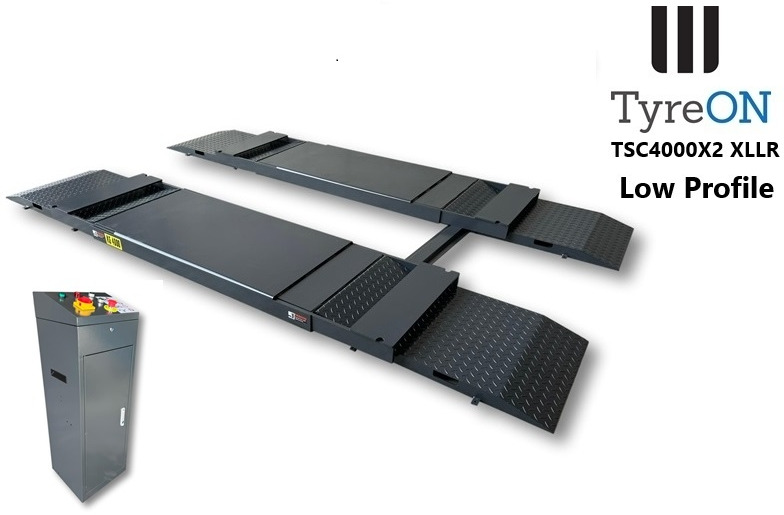

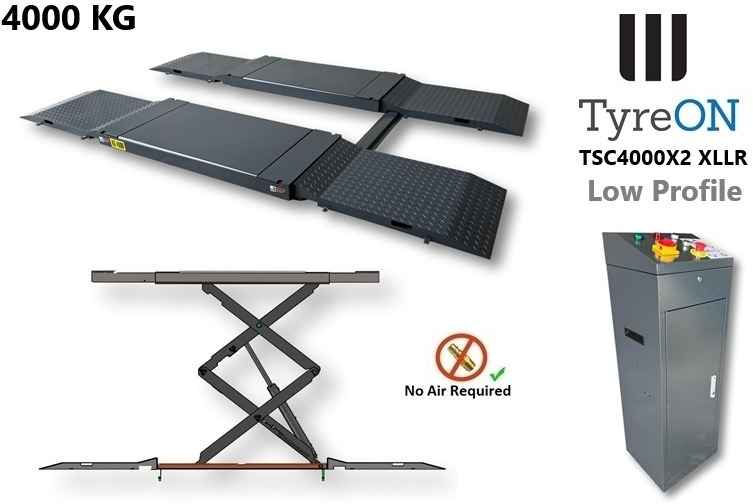

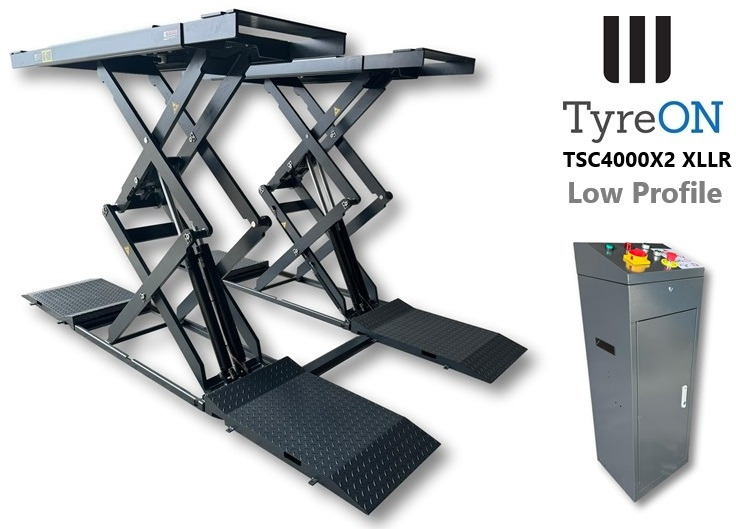

Werkplaats toebehoor TSC4000X2 XLLR Low Profile 4T floor mounted scissor lift - Large lifting range, 66 cm wide extendable tables 148.5 to 230 cm - Hydromechanically locked - no air required - Also for vehicles with 5 cm

The price is excluding tax and delivery costs

-

Capacity: 4000 kg

-

Drive: 2.2 kW Electric-hydraulic

-

Type: Fully automatic - Heavy duty

-

Platforms: 148,5 - 230 cm - Double extensions

-

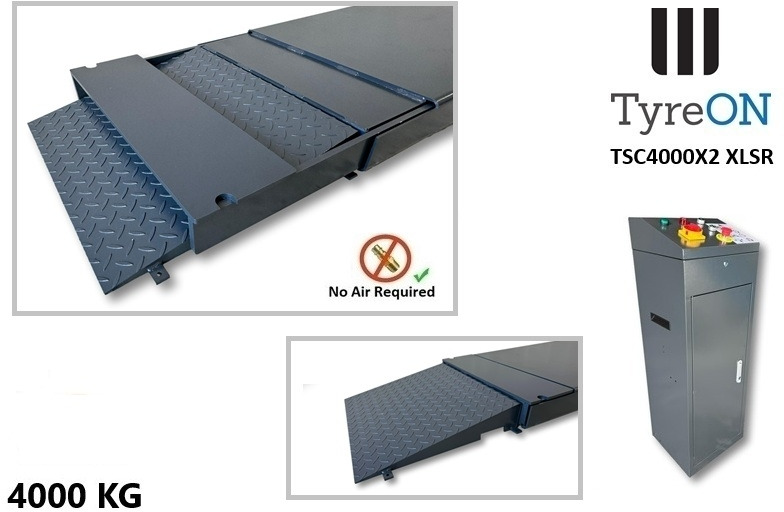

Hydraulic mechanical safety lock; Safety and overload valves in the cylinder systems; No air required - immediate descent; Auto-stop at 25 cm + slow descend; IR synchronization monitoring; Tip-lever system; Axles with bearing bushes; 4 x 100 cm long ramps voor 5 cm ground clearance

-

Package: L160 x W80 x H42 cm - 900 kg

-

Controller: L48 x W41 x H116 cm - 50 kg

-

Colour: As of 2024, completely anthracite grey RAL7016

-

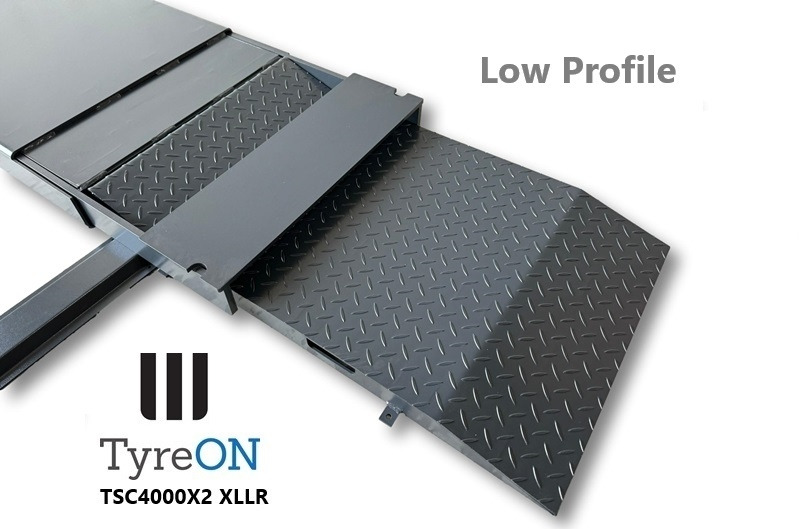

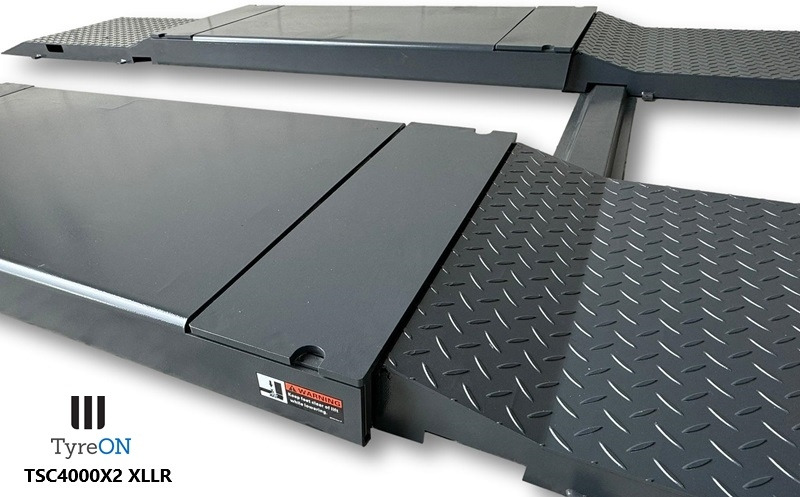

230 cm platform length - 5 cm ground clearance

If the platforms of other wheel-free scissor lifts are too short, this scissorlift is the ideal solution.

The two-way extendable platforms have a length of 148.5 cm to 230 cm.

Designed for lifting small and large passenger cars and sports cars, SUVs, commercial vehicles and buses with short, long and multiple extended chassis up to 4T.

This Low Profile lift with 5 cm drive-on height is used by Ferrari, Porsche and Maserati dealers and is suitable for all vehicles with 5 cm ground clearance or low suspension.

The carlift lifts directly with full force from the lowest point thanks to the tip-lever system.

The heavy-duty hydraulic pump unit provides the 4 cylinders with the necessary lifting force.

A safe direct lowering of the platforms, as soon as the down button is pressed, is characteristic of this hydromechanical wheels free scissorlift.

Solid safe professional scissor lift

• Low profile
• Extremely large reach; tables 148.5 - 230 cm
• Suitable for very short to very long wheelbase
• Hydromechanical locking, direct lowering
• No compressed air required, low maintenance
• 24V controller, can be placed on both sides
• Solid steel scissors
• Tip-lever system
• Hydraulic synchronisation control, IR monitored
• 66 cm wide platforms
• Oil pump with load-dependent lowering valve
• 2 lifting cylinders per lifting platform (hard chromed)
• Lifting cylinders protected under metal plate
• Very simple to use and maintain
• Lubrication points on the moving parts
• Automatic venting and synchronisation of the liftingplatforms by one button

Hydraulic fittings protected under the scissorlift
