Nieuw Mijnbouw machine FABO mining machinery - crushing plant

• All of our products are made with care and covered for 1 year warranty!
• Installation and Operator Training FREE

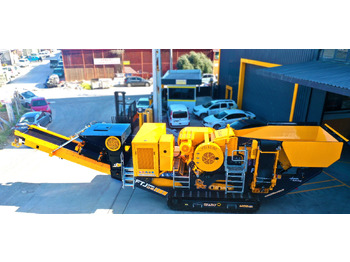

Fabo tracked impact crusher FTI-130s is a complete mobile system which moves on hydraulicly driven tracked system with 1 km/h speed and combination of a vibrated grizzly feeder, an Impact crusher, foldable stockpile conveyors, control unit and electric generator.

In today's conditions and technological processes, businesses are beginning to think about how to make their field of activity more efficient. As they make it more efficient, they always take into consideration factors such as the operationality of the machines they use, their low cost and staffing needs. Our Tracked Crushers can crush with high performance even on the most demanding mine sites with its specially designed body and compact structure. Customization can be done to our tracked systems by Jaw Crusher, Primary and Secondary Impact or Cone Crusher.

Advantages of Tracked Crushers;

-Heavy-duty walking tracks can reach places where ordinary machines can not reach.

-It has the appropriate dimensions and sound level to crush construction waste in the city.

-The fuel consumption of the generator and walking track units are very economical.

-System maintenance and management is very easy with latest technology control software.

TECHNICAL SPECIFICATIONS:

Model: FTI-130s

Production Capacity: 400-450 tons per hour

Maximum Feeding: 500 mm

Crusher Type: Impact Crusher

SIZE: 1270x1200 mm

CSS Setting: 0-50 mm

Total Power: 500 kva

Vibrating Screen: 1500x4200 mm

Weight: 63 tons

- Low investment and operation cost

– Zero substructure preparation

– Easiness at usage and maintenance

– Easy assembly and disassembly

FOR FURTHER INFORMATION PLEASE FEEL FREE TO CALL US!!!
