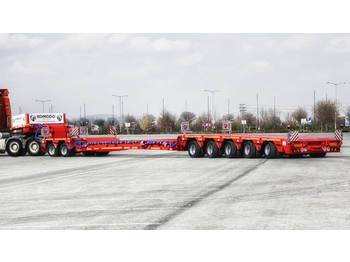

Chassis oplegger KOMODO 5+2 Axle Modular Chassıs – Dls System Lowbed Semi Trailer

- TECHNİCAL CAPACİTY DEPENDS ON SPEED:

108,000 kg -60/80 km/h

128,000 kg -25 km/h

130,000 kg -15/20/h

132,000 kg -10 km/h

138,000 kg -5 km/h

- STEEL CONSTRUCTION:

High tensile strength with S 690 QL and S 700 MC materials, High strength steel construction

Welder test according to TS EN ISO 9606-1 Welding process MAG according to EN ISO 4063.

Shielding gas M21 according to EN ISO 14175.

- KING PIN AND BACKMOST DISTANCE:

10337+5000 mm

- AXLES:

Axle group, Set content 7 pieces Hydraulic suspension with lifting/lowering valve 7 high-strength hydraulic suspension cylinders.

- EXTENDED LENGTH:

17.500 mm

- BRAKE SYSTEM:

14 pieces of 24-30’’ emergency brake chambers 12 pieces of automatic brake adjuster Drum brake system, Emergency brake, Load adjustment valve, WABCO braking system conforming to EU regulations EBS-E system 4S -3M WABCO (without connection to truck).

- GOOSENECK LENGTH:

4000 mm

- ELECTRIC SYSTEM:

SABA or ASPÖCK comply with EU standards

24 V & ABS plug

2 pieces stop lights with 7 functions,

2 pieces plate lighting lamps,

Side warning lights,

Speed plates,

Reflectors,

Blinker lamp in the rear bumper.

- PLATFORM LENGTH:

12500 mm

- TIRE SIZE:

J) Type 245 / 70 R 17,5 Twin tyres

Load Index 141/143 J (146/146F)

1 spare wheel

- TOTAL WIDTH:

3,000 mm

- GOOSENECK TURNİNG DİSTANCE:

2.350 mm

- PLATFORM HEIGHT:

900 mm

- KİNG PİN LOAD:

24.000 kg

- WARRANTY:

1 year for Parts / Manufacturer warranty. (Excluding accident-usage errors),

1 year manufacturer (Excluding, accident-usage errors),

1 year paintwork (Except for accident-usage errors)
