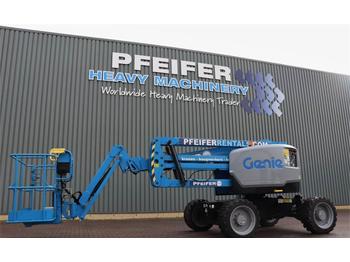

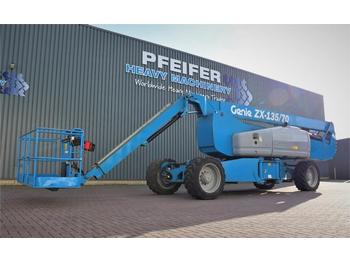

Knikarmhoogwerker Genie ZX-135/70

Manufacturer: Genie

Typ: ZX-135/70

Building year: 2014

Fuel: Diesel

Serial number: ZX13513-2227

Working hours: 1.757 h

Measurements

Working height maximum: 43.15 m

Horizontal reach max - riser extended: 18.03 m

Horizontal reach max - riser retracted: 21.26 m

Up and over maximum riser extended: 23.01

Up and over maximum riser retracted: 9.91 m

Below ground reach: 5.87 m

Width - axles retracted: 2.49 m

Width - axles extended : 3.94 m

Wheelbase - axles retracted: 4.11 m

Wheelbase - axles extended: 4.11 m

Ground clearance - center: 0.38 m

Productivity

Lift capacity: 272 kg

Platform rotation: 160°

Vertical jib rotation: 110°

Turntable rotation: 360° continuous

Turntable tailswing - axles extended riser up: 0.81 m

Turntable tailswing - riser down: 4.29 m

Drive speed - stowed: 4.8 km/h

Drive speed - raised: 1.1 km/h

Gradeability - stowed: 45%

Tires: Outrigger 445D50/710 (60%) Foam-Filled

3.66 to 6.1 m Jib-Extend

Proportional joystick controls

Drive enable

AC power cord to the platform

Positive traction 4WD

Two speed wheel motors

Four wheel high angle steer

Four steering modes: front, rear, crab and coordinated

Four wheel brakes

On board full diagnostics and engine monitoring display

Platform Load sense system

Lift Guard Contact Alarm

• CE (Declaration of Conformity)

More detailed pictures / product movie on our website.

pfeifermachinery.com

Above specifications are subject to change without prior notice and subject to errors.
